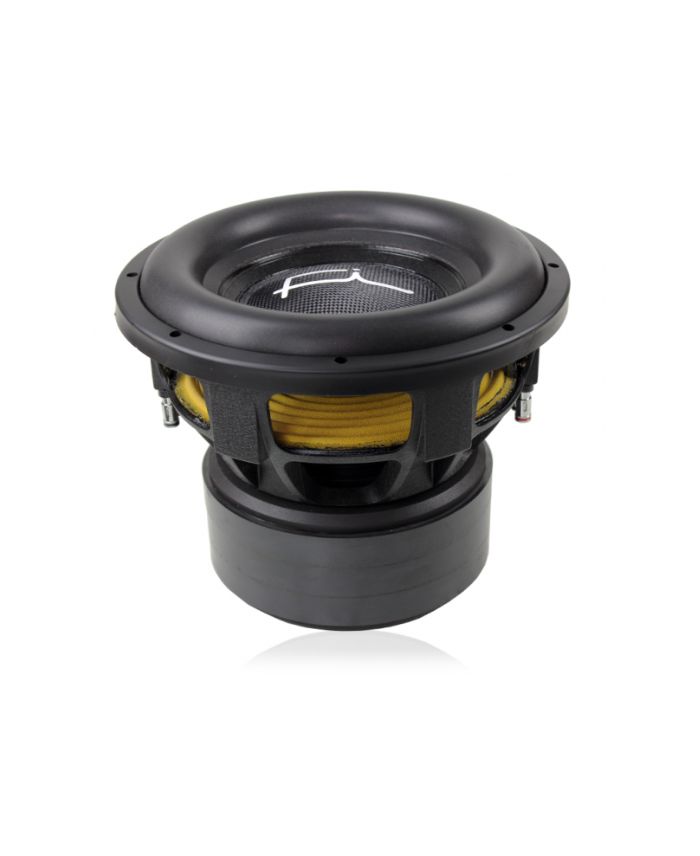

Du vil opptjene 900 poeng ved å handle denne varen som du kan løse inn på neste kjøp.The HC Series signals a return to traditional ferrite motors. The HC Series is the latest in the progression of Fi subwoofers geared towards thundering daily drivers. Utilizing a favorite 3 stack ferrite magnet design using US steel cut on our water jet and finish machined on our CNCs, there is plenty of motor force in the FEA derived design for both daily and SPL use. Utilizing a solid pole and staged aluminum cooling helps keeps thermal temperatures under control. A classic 3 stack of ferrite magnets provide the Gauss while 4 Fi designed 10″ heavy progressive spiders keep things under mechanical control. Utilizing a special 144 tinsel count leadwire that is double sewn to the spider pack, there are no losses in power transfer to the coil (available in either standard stitched with terminals or the hybrid stitched with bolted termination.
TS-parametre:
| Coils | D1/D2 |
| Fs | 32.3 Hz |
| Re | .9/1.8 |
| Qms | 7.71 |
| Qes | 0.38 |
| Qts | 0.35 |
| Mms | 399 g |
| Cms | 6.04^-5 |
| Sd | 1210 cm^2 |
| Vas | 125.2 l |
| Spl | 92.4 1W/1m |
| Bl | 20.0/28.2 |
| Xmax | 34 mm |
| Rms | 2500W |
| Varenummer | HC 18 |
|---|---|
| Antall | 1 |
| Enhet | Stykk |
| Merkevare | Fi |
| Produksjonsland | USA |
| Effekttålighet (RMS) | 2500W |
| Følsomhet | 92 dB |
| Impedanse | 2x2 Ω (kobles i 1 / 4 ohm) |
| Monteringsdybde, bass | 293 mm |
| Monteringsdiameter, bass | 429 mm |
| Vekt med embalasje | 34.500000 |
