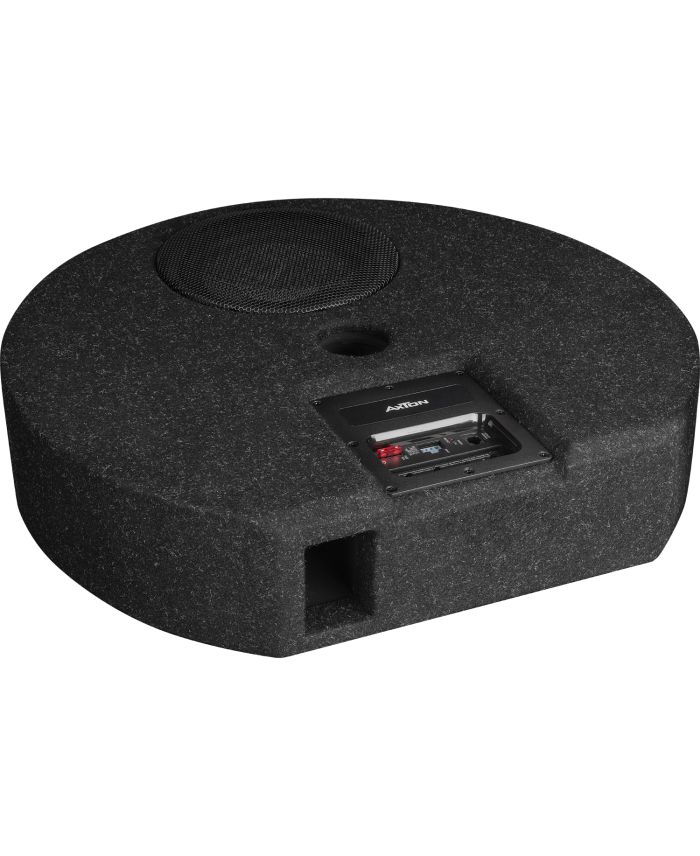

ATB20RXF er en rund, ultra-flat aktiv basskasse for hjulbrønnen til reservedekket. Med en høyde på 125mm, passer kassen i nesten alle reservedekk-brønner i dagens biler.

Høydepunkter:

• 8“ / 20 cm amplified subwoofer
• Bass reflex principle with flow-optimized port
• Powerful 20 cm subwoofer with strong magnet motor and rigid membrane
• Frequency response: 35 – 180 Hz
• 1 x 100 W RMS amplifier module
• Variable lowpass filter: 50 – 150 Hz/12 dB/oct.
• Bass-Boost: 0 dB - 12 dB
• Phaseshift 0 / 180°
• RCA, adjustable input sensitivity: 150 mV – 5 V
• High-Level, adjustable input sensitivity: 1.0 V – 16 V
• Signal to noise ratio: > 90 dB
• Dimensions (D x H): 580 x 125 mm, weight: 11.6 kg
