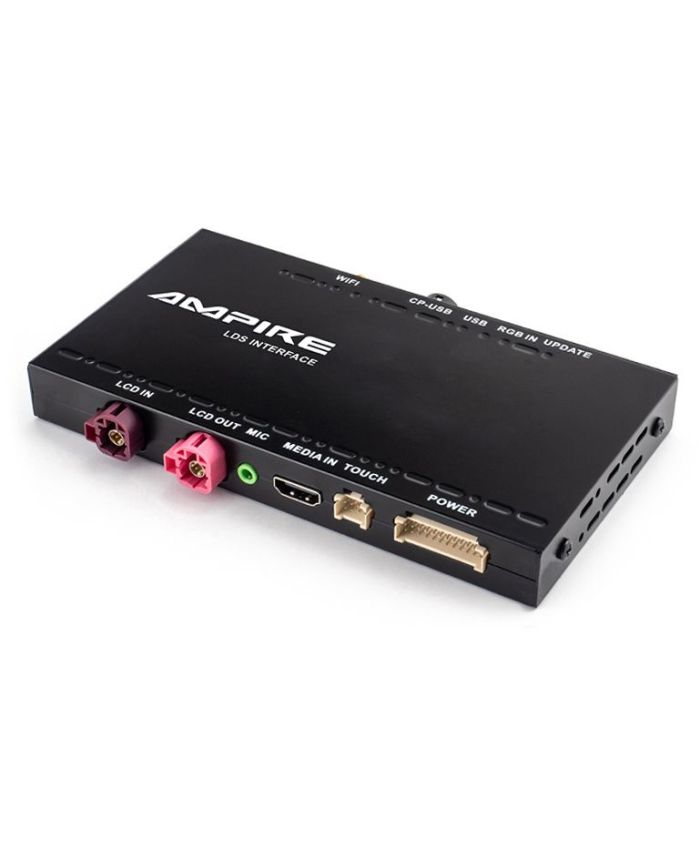

Biltilpasset interface som gir trådløs Apple Carplay og Android Auto med mer.
Wireless CarPlay
Android Auto
Mirrorlink
IPAS+PDC
Front view Camera in
Rear view camera in
USB
Multimedia playback AUX-USB
AUDI A4 2010 - 2015 AUDI A5 2009 - 2016 AUDI A6 2009 - 2011 AUDI A8 2009 - 2009 (MED MMI 3G) AUDI Q5 2009 - 2016 AUDI Q7 2010 - 2014
MMI 3G/3G+ (HIGH).
Installasjon:
The main wire harness hast to be connected to the Audi Gateway. You need to uninstall the glovebox, the gateway is located on the left at the center tunnel.
The LDS audio harness has to be inserted into the Quadlock at the green position.
The LVDS connections have to be made behind the HU, not behind the monitor.
The blue-white MMI wire of the LDS interface has to be connected to the wire of pin 10 of the Quadlock connector.
The right DIP switch settings are DIP 8 ON, all others OFF. Please press and hold the reset button for 3 seconds then.
Den tyske veiledningen er bedre å bruke enn den engelske.
